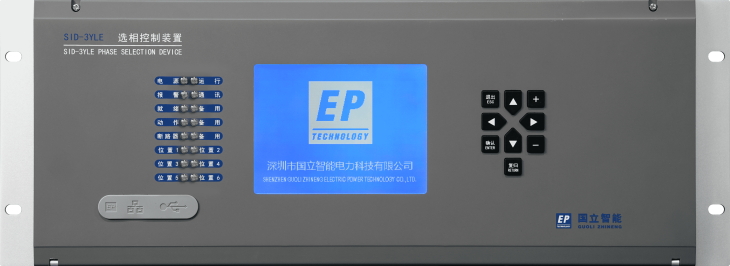

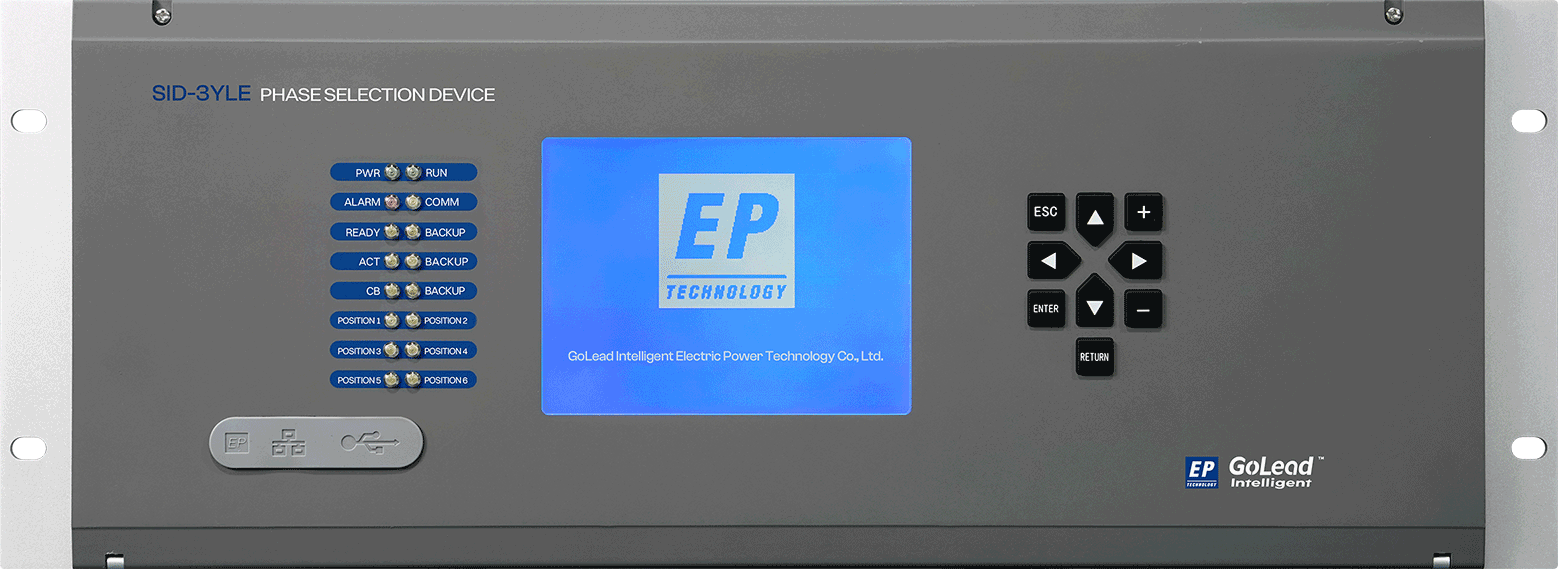

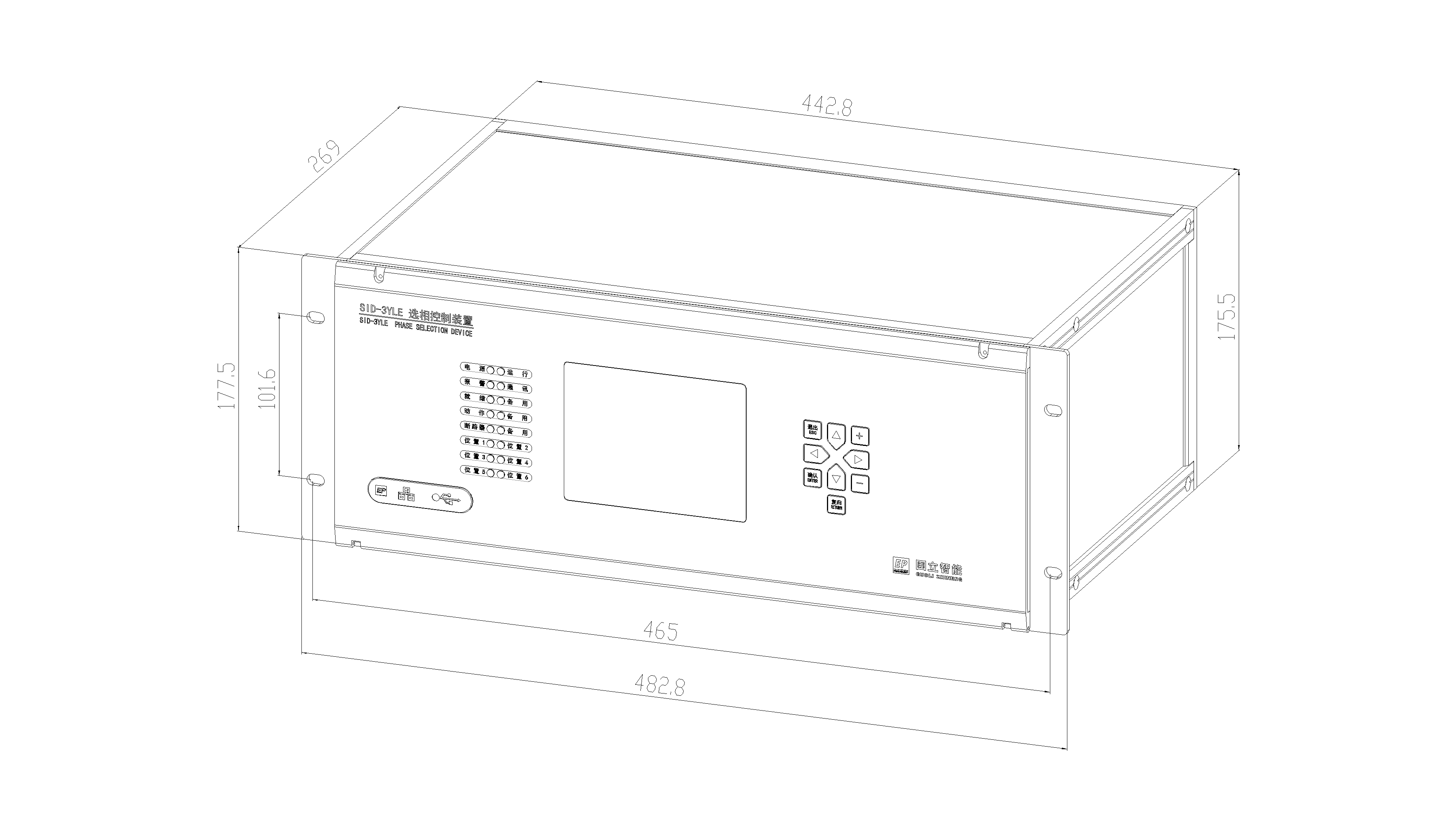

SID-3YLE

Phase Selection Device

SID-3YLE is a high-performance phase selection reclosing controller, specifically designed to suppress transient impacts caused by switching nonlinear loads.

It features precise phase angle control, supports phase-separated or linked breaker operations, and incorporates advanced algorithms such as online transformer residual magnetism calculation and adaptive breaker timing correction to ensure optimal closing angles.

With an independent dual-system control architecture, a single device can control two breakers simultaneously, and it supports online switching of multiple application modes. The controller is compatible with Modbus and IEC 61850 MMS protocols and integrates rich waveform recording and event logging functions, making it an ideal solution for safe and accurate reclosing of critical equipment.

Enquire Now

Download

Main Functions

(1)
Precise phase angle control for circuit breaker closing and opening
(2)
Phase-separated and linked control of breaker operations
(3)
Proprietary online transformer residual magnetism calculation algorithm
(4)
Automatic detection of breaker operating time
(5)
Adaptive timing compensation based on historical breaker operations
(6)
Environmental impact compensation curves for accurate timing correction
(7)
Post-operation performance analysis of control strategy
(8)
Independent dual-system control architecture for enhanced reliability
(9)
Two RS485 ports and three Ethernet ports, supporting Modbus and IEC 61850 MMS communication protocols
(10)
IRIG-B (serial) and SNTP (network) time synchronization support
(11)
Comprehensive event recording and waveform capture, with dedicated upper-computer software for analysis
(12)
Integration with phase-selection reclosing system backend for full-lifecycle data management
(13)
Multiple application modes available for online switching
(14)
Single device capable of controlling two circuit breakers

KEY Features

1

Large Display

5.7-inch large LCD display for enhanced human–machine interface (HMI) experience
2

Dual-Breaker Control

Expandable via interface modules, enabling a single device to control two circuit breakers independently
3

Flexible Application Modes

Multiple built-in application modes selectable based on field wiring configuration
4

Dual-System Redundancy

Independent dual-system control architecture ensures high output reliability
5

Flux-Based Control

Online transformer residual flux calculation, providing optimal closing angle and control strategy
6

Adaptive Timing

Post-operation analysis of breaker actual operating time, with adaptive correction based on historical timing
7

High-Resolution Sampling

200 samples per cycle for high-precision measurement accuracy
8

Switching Flexibility

Supports both phase-separated and linked breaker control, depending on breaker type
9

Multilingual HMI

Multilingual user interface, supporting online language switching

SPECIFICATIONS

Rated Frequency

50 Hz or 60 Hz
Input Contact Rated Voltage

110 V or 220 V DC
Output Relays

Potential-free (dry) contacts
Communication Interfaces

2 × Serial Ports, 3 × Ethernet Ports
Operating Temperature

−20 °C~+55 °C
Storage Temperature

−20 °C~+80 °C
