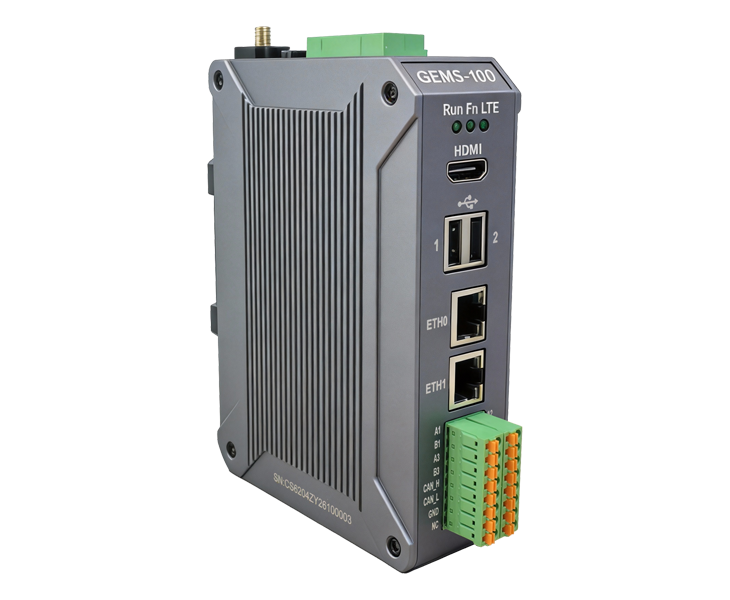

GEMS-100

Hybrid Energy Controller

The GEMS-100 Hybrid Energy Controller is a core control device designed for hybrid energy management in microgrids. Based on a hierarchical control architecture, it enables unified data acquisition, monitoring, and optimized dispatch strategy execution for multiple energy sources, including diesel/gas generator sets (synchronous generators), utility power, photovoltaic (PV), wind power, and inverter-based energy storage systems.

The device integrates real-time monitoring, statistical analysis, optimized control, energy efficiency and equipment management, safety protection, and remote operation & maintenance functions. It is widely applicable in commercial and industrial energy storage, microgrids, and integrated PV-storage-charging systems.

Enquire Now

Download

Main Functions

(1)
Data Acquisition and Monitoring (SCADA)
(2)
Multi-Protocol Communication Configuration
(3)
Multi-Source Energy Dispatch Optimization
(4)
Scheduled Charge and Discharge Control
(5)
Peak-Valley Energy Arbitrage
(6)
Demand Management
(7)
Anti-Reverse Power Flow Control
(8)
Backup Power Transfer Control
(9)
Multi-Cabinet Cascaded Dispatch Management
(10)
Audio and Video Processing
(11)
System Coordinated Control (Fire Protection / EMS / Environmental Monitoring)
(12)
Watchdog Protection
(13)
Alarm and Protection Management
(14)
Redundant Master-Standby Architecture
(15)
Cybersecurity Protection
(16)
Encrypted Data Transmission
(17)
Access Permission Management

KEY Features

1

Multi-Source Coordination and Hierarchical Control

Coordinates multiple energy sources including diesel/gas generators, utility power, PV, wind power, and energy storage systems through hierarchical control, enabling unified monitoring and optimized dispatch strategy execution.
2

Full-System Data Acquisition and Monitoring

Collects real-time data from BMS, PCS, smart meters, thermal management systems, fire protection systems, and other devices, providing comprehensive visualization of the entire station status.
3

Intelligent Energy Management Strategies

Built-in strategy models support peak-valley arbitrage, demand management, anti-reverse power flow, PV-storage coordination, and backup power control. Supports customized daily and weekly schedules to automatically adapt to time-of-use electricity pr
4

Comprehensive Safety Protection

Combines hardware watchdog mechanisms with software protection strategies, covering overvoltage, overcurrent, overtemperature, communication interruption, and fire protection linkage scenarios. Environmental monitoring alarms can be pushed in real ti
5

Network Security and Data Protection

Provides comprehensive cybersecurity and encrypted communication mechanisms, integrating industrial firewall functions and encryption chips. Multi-level access control and operation auditing ensure system security.
6

Flexible Customization and Deployment

All hardware and software are independently developed and can be customized according to project requirements. Supports both local C/S architecture and cloud-based B/S architecture deployment.

SPECIFICATIONS

Power Supply

24 V DC
Display Interface

HDMI interface supported, optional display configuration available
Serial Interfaces

4 × RS485, 1 × CAN, 1 × RS232 Console (all isolated)
Ethernet

2 × LAN (10/100/1000 Mbps)
Wireless Communication

4G / 5G Full Network Access / WiFi
USB

2 × USB
Device Compatibility

Compatible with mainstream PCS, BMS, smart meters, thermal management systems, fire protection systems, and inverters
Protocol Library

Supports IEC 104/101/103/61850, Modbus RTU/TCP, CDT, DLT645, MQTT, HTTP, and 300+ communication protocols
Cascade Capacity

Up to 32 units (one master with multiple slave units)
Operating Temperature

-40°C to +85°C
Protection Rating

IP40 (higher protection levels optional)
Corrosion Protection

C3 (C4/C5 optional)
Installation Method

DIN rail mounting (fanless cooling design)
EMC Protection

EMC Class III (GB/T17626, GB/T15153, IEC 61850-3, EN61000-6-5)
Data Throughput

Supports real-time processing of 10,000+ data points
Control Response Time

Local command response <100 ms; strategy switching <200 ms
MTBF

≥100,000 hours
